Fire Rescue Truck
Provide comprehensive support for fire-fighting operations
OPTIMIZED EQUIPMENT LAYOUT

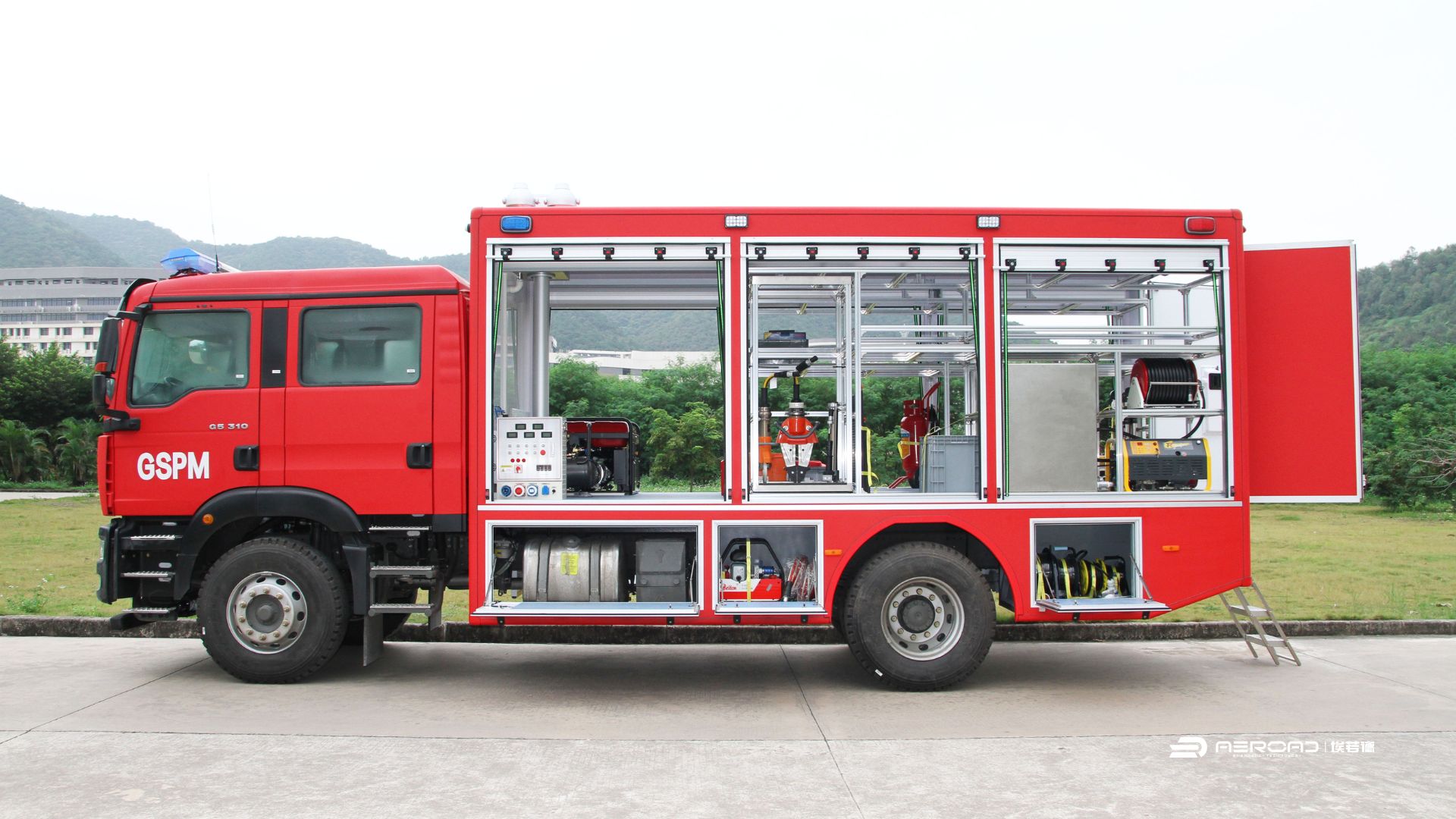

1.極致空間布局
Front compartment
Equip with medium-large equipments, such as integrated power box, pneumatic light tower, generator, etc, to control the power supply and lighting of the entire vehicle.
Middle Compartment
With aluminum alloy equipment racks and slide-out trays, to fit compact-medium equipments, such as hydraulic breaking tools, fire extinguishers, etc.
Rear compartment
With aluminum alloy equipment racks, to fit medium-large equipments, such as water/foam tank, water mist systems, signal cones, foldable ladders, roadblocks, etc.
6x Side storage compartments
Three side storage compartments equipped on each side, six in total, to provide easy access to vehicle maintenance and offer extra equipment storage.
EASY EQUIPMENT ACCESS
2.1 便捷卷簾門
Roller doors
Two sets of fire-fighting roller doors for each equipment compartment, bundled with lock blocks, grip bars and access straps. Six sets in total.
2.2 裙邊踏板

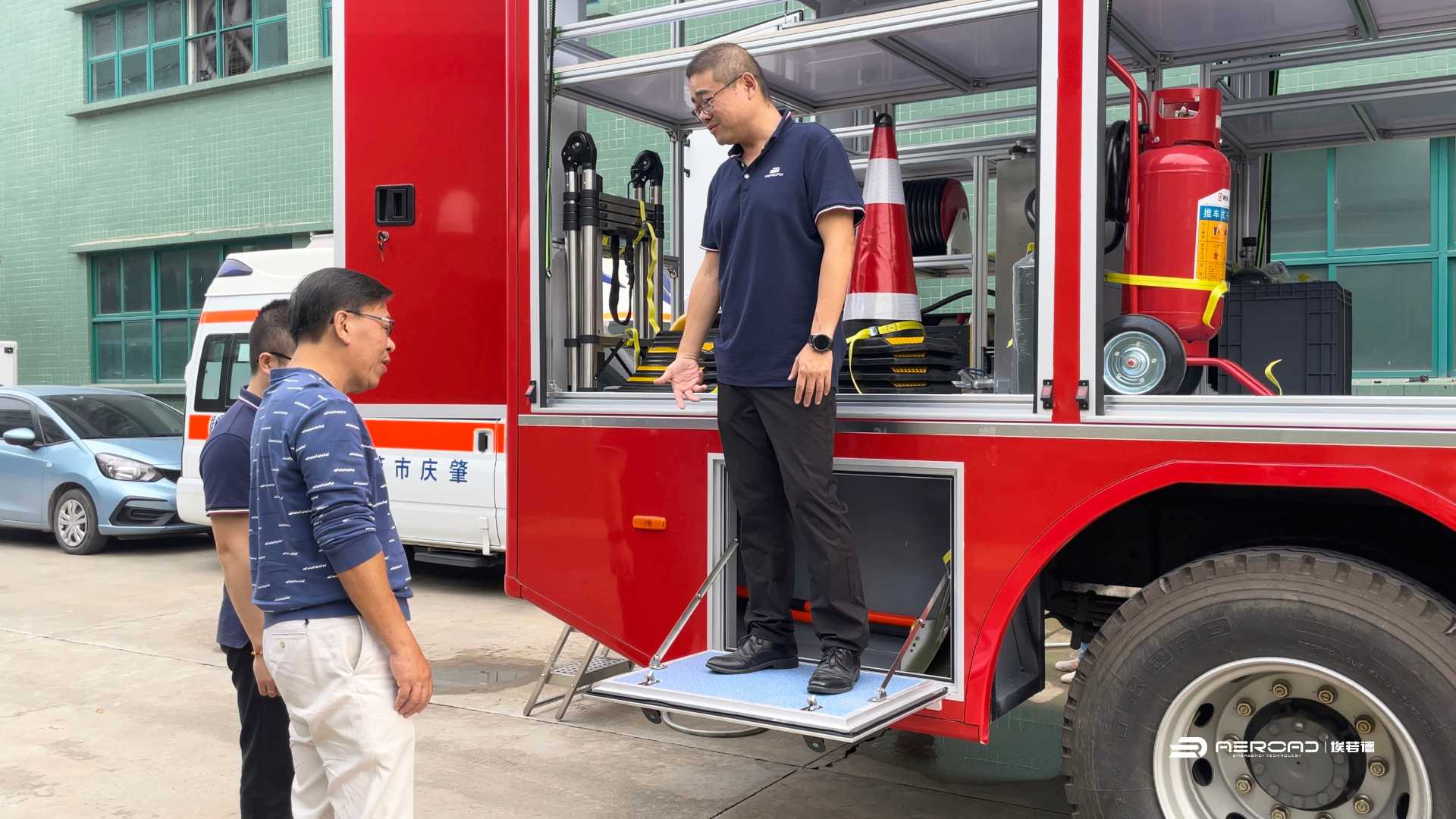

Fold-down steps
The side storage fold-down panels with wire protection can be used as fold-down steps with superior payload capability, providing convenient access to equipment.
2.3 隱藏式抽拉梯

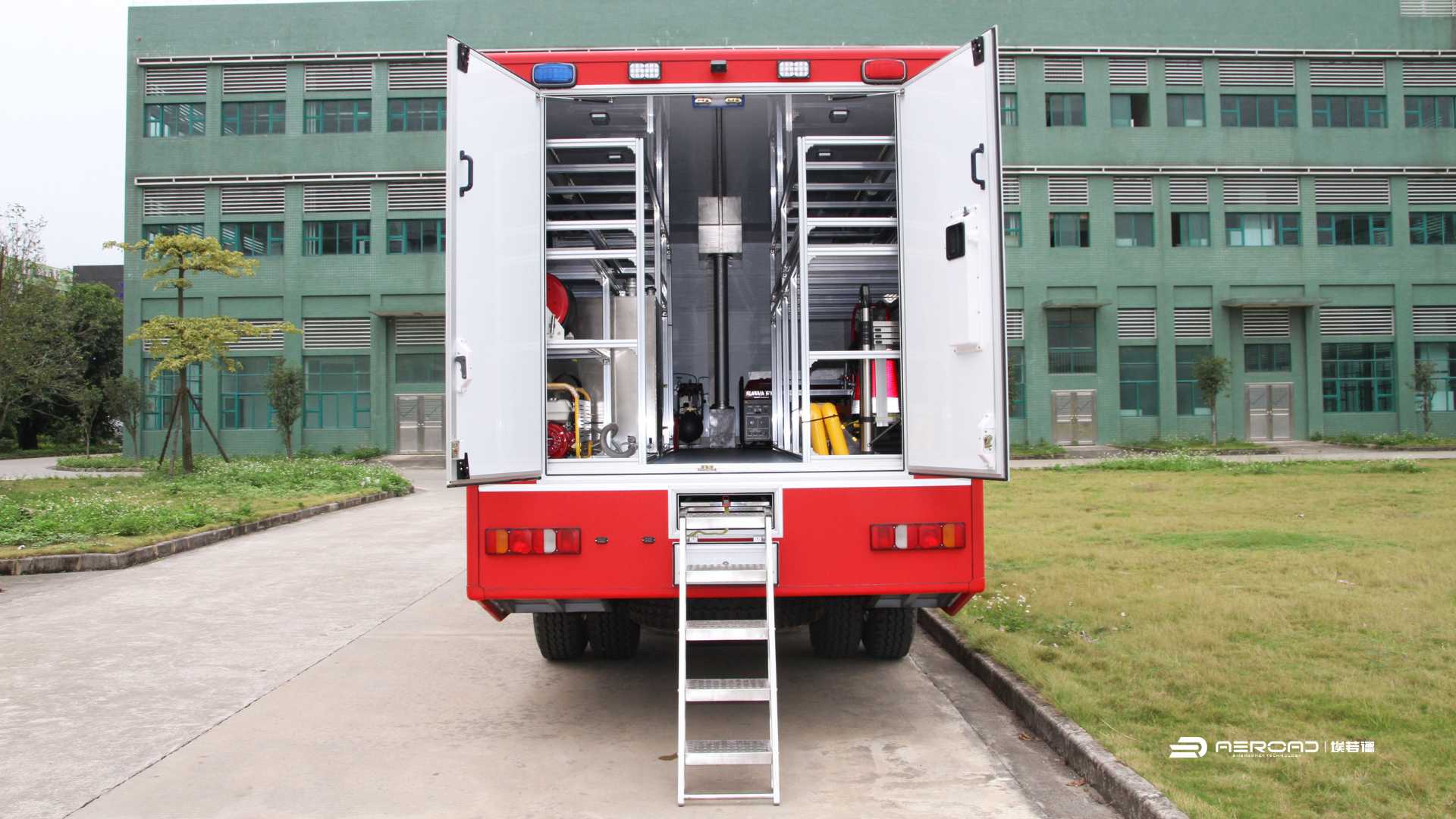

Concealed ladder
The rear concealed ladder has dual locking mechanisms and allows for convenient walk-in access.
MULTI-SUPPORT SYSTEMS
3.1 照明

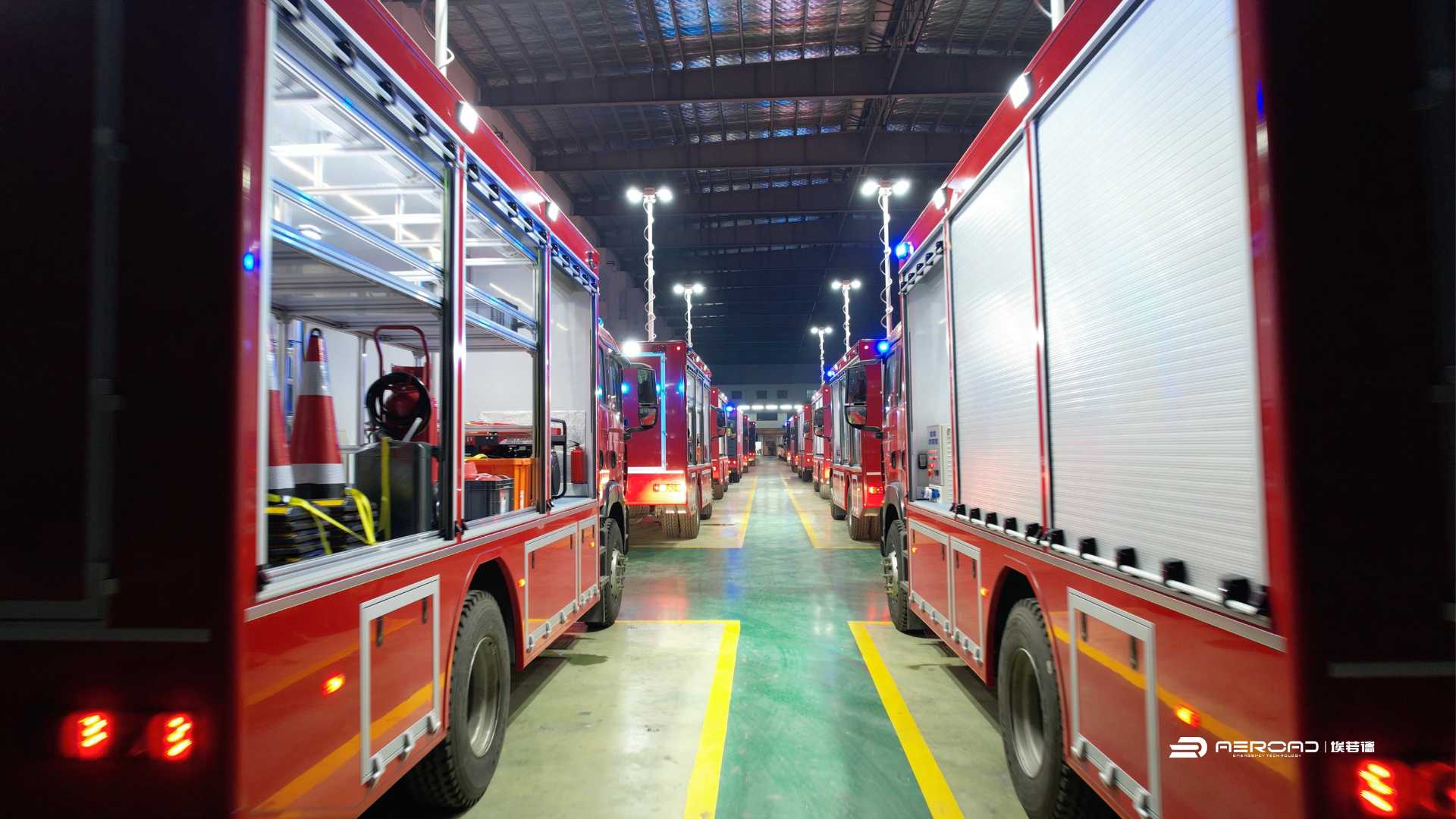

Comprehensive lighting system
The combination of LED flashers, exterior and interior scene lights and pneumatic light tower provides sufficient light source for fire-fighting operations.
3.2 互聯(lián)互通

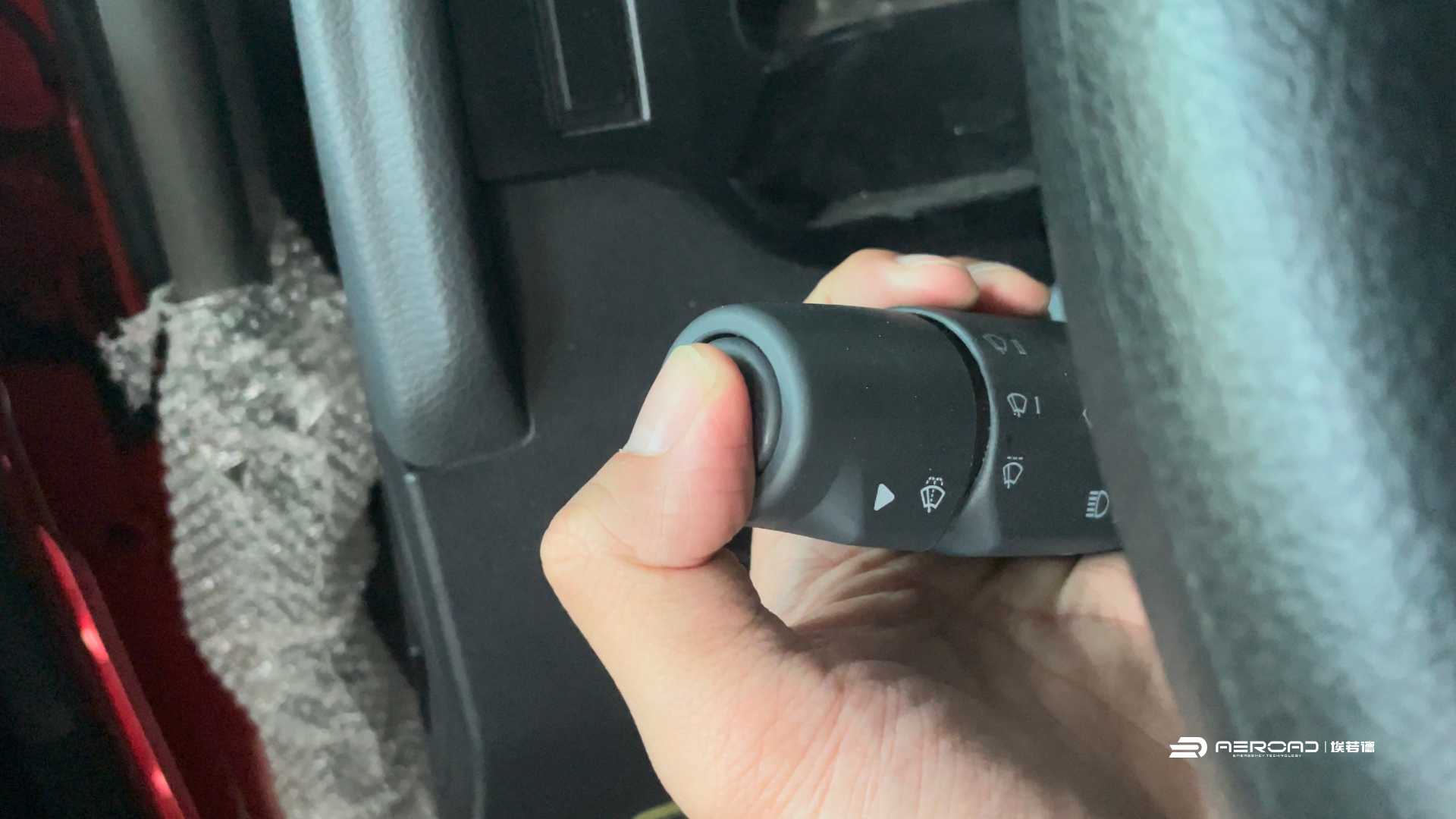

Horn-Siren interconnection system
When activated, press the original car horn button to issue rapid or continuous siren, instead of with one hand on the wheel and another hand reaching out to the flasher/siren controller, dramatically improving the driving safety.
3.3 無線通訊

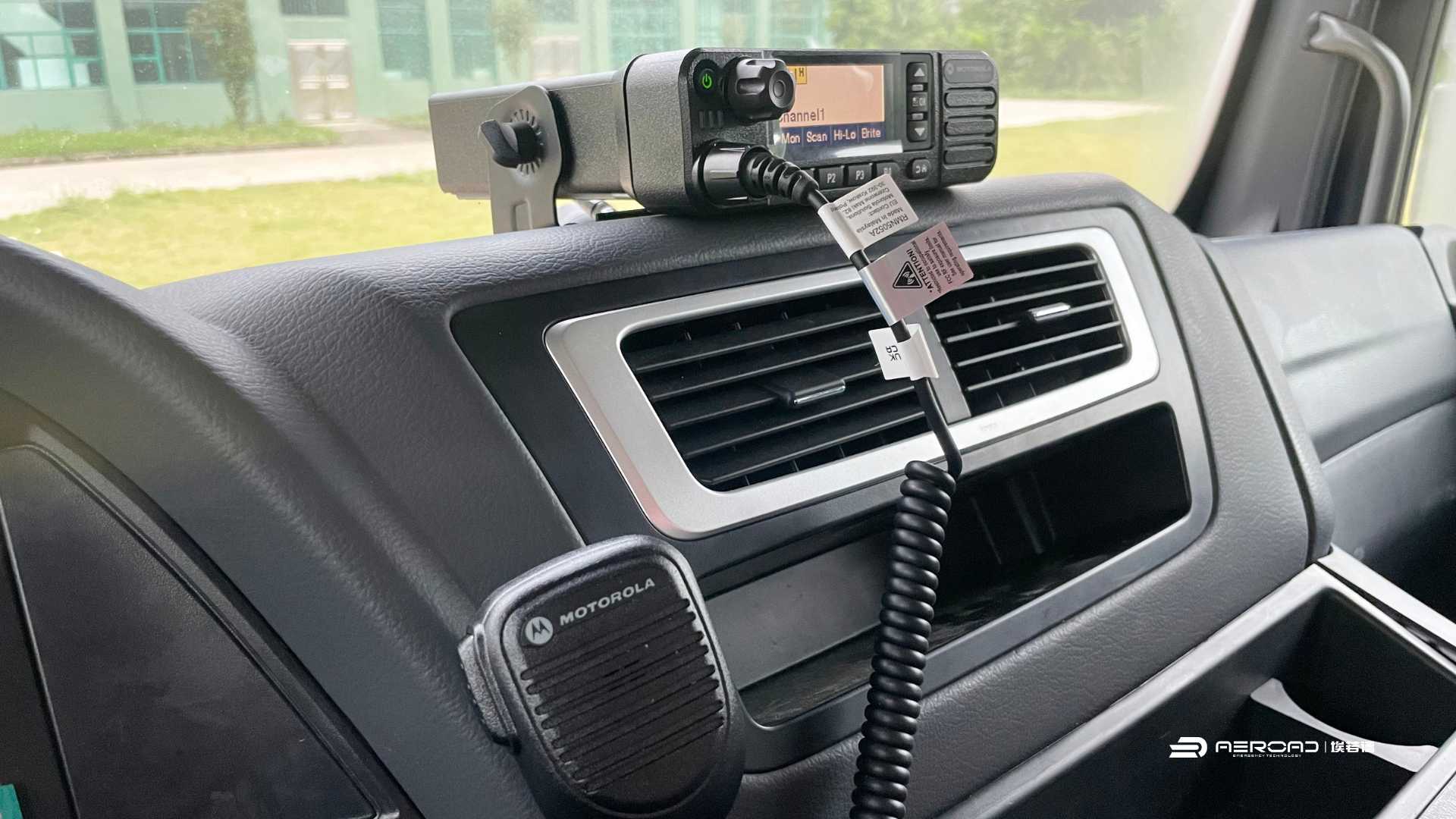

Wireless radio station
Wireless radio station equipped in the driver compartment, providing reliable communication support.
3.4 電動絞盤

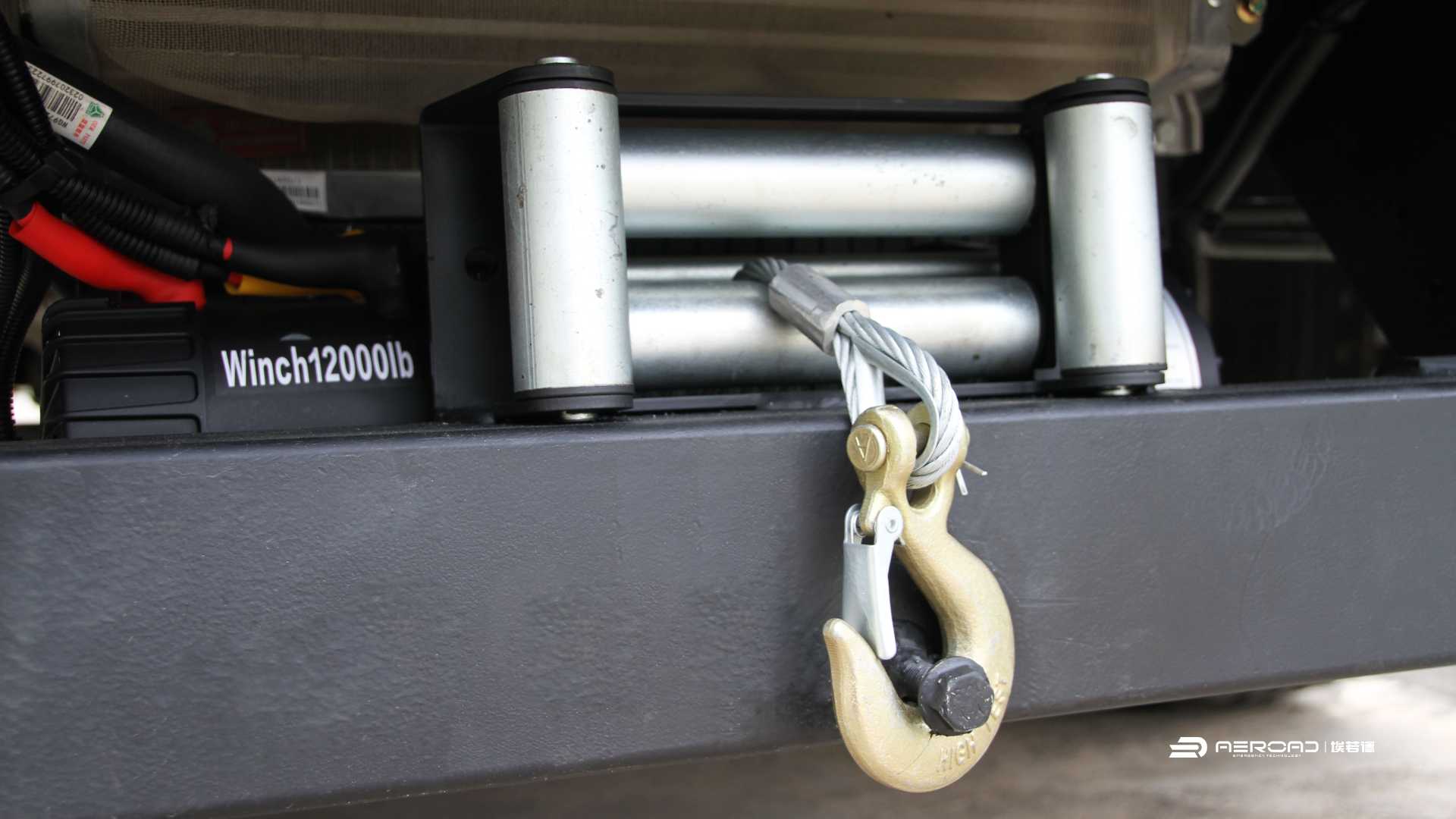

Electric winch
Powerful electric winch equipped in the lower front end of the vehicle, with a maximum 4,000kg traction force and wireless/wired control modes.
INTELLIGENT POWER MANAGEMENT
4.用電
Integrated power box
It makes it convenient to observe the power supply status, select the power sources and input/output, and control various lighting sources.
Multiple power inputs/outputs
Select external power sources or generator for power supply accordingly, as well as for charing external equipments, to ensure the continuous and reliable power supply for field operations.
Generator
The petrol generator selected fulfills the intensity and long-lasting requirement of fire-fighting operations. When with full tank of fuel, it provides 9 hours of non-stop power supply. The interior of the front compartment is covered with thermal-insulated reflective film for extra protection.
DEDICATED COMBINATION
5.1 底盤
5.2 方艙

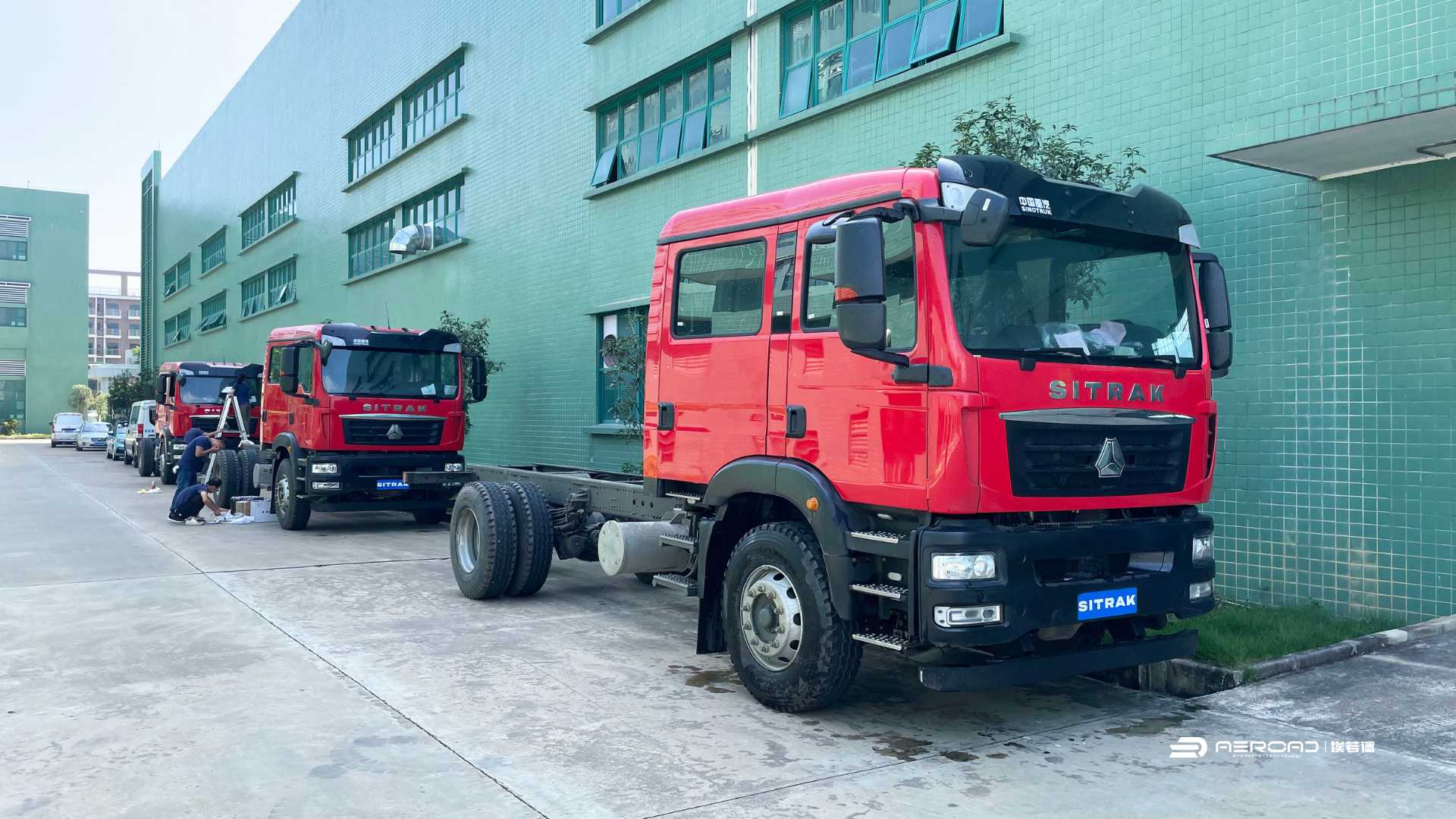

Dedicated base vehicle
The fire-fighting dedicated base vehicle offers sufficient seating capacity and outstanding power, making it possible to operate in complex conditions. Optional base vehicle and specification.
Dedicated aluminum box
The rear compartment is constructed with aluminum box that features lightweight, high density, superior strength. The sandwich structure features outstanding characteristics of soundproofing, thermal insulation, shock resistant, moisture proof, corrosion proof, etc
PRODUCT GALLERY
6
7
8
9
SUCCESS STORIES
MAIN TECH SPECS
For reference only. Specifications subject to base vehicle and configurations selected.
Ext.Dimension mm
8560*2680*3810
GVW kg
20,000
Displacement L
10.518
Fuel
Diesel
Torque Nm
1,550
Gearbox
Manual
Drive
LHD / RHD
Emission Standard
Local fit
