Transit T8 Box Ambulance

G2
Aluminum Box Structure
Featuring light weight, high strength, high density, and sufficient room, the aluminum medical box allows for more layout options and applications.
Big Corners
*
A big-corners design is adopted, allowing to access the spine board and scoop stretcher from the outside flaps and to customize outside flaps for additional storage.
Diverse Side Doors
*
The side access door comes with various options, including electric sliding door with emergency switch, manual sliding door, as well as leaf door.
板材

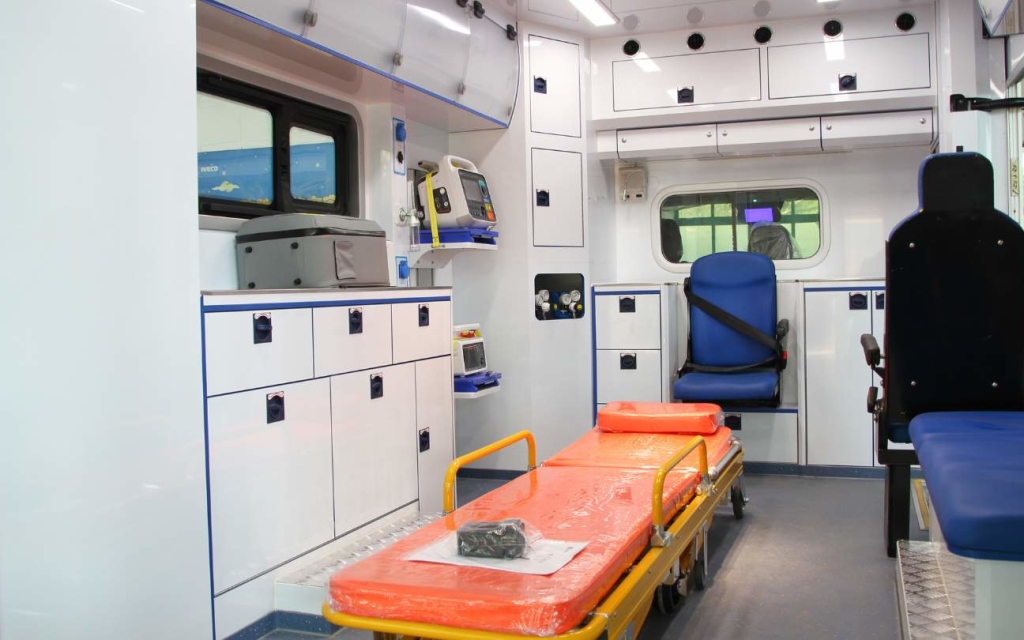

PVC/Aluminum Interior
The patient compartment can be made of PVC interior with optional aluminum sheet that embraces lightweight, heat preservation, flame retardancy, UV protection, impact and deformation, etc. It offers outstanding practicality and customization.
Customizable Layout
With spacious interior and benchmarking payload capability, the Transit T8 Ambulance can fulfill complex layout and storage requirement, including BLS, ALS, Infection control, Transport, Neonatal, etc.
定制化
Premium Customization
PRECISE CONTROL
To access all functional systems through all-in-one central control system.
T8 - 3.1 觸摸屏
Central Touch Screen
To access systems of lighting, power supply, auto oxygen supply, AC, heat, air filtration, etc., in one place. Functions are optional and the user interface is fully customizable.

*Illustrated configurations for reference only.
3.2 機械
Mechanical Control Panel
While controlling all systems, the mechanical control panel provides large physical buttons with status indicators.

*Illustrated configurations for reference only.
INFINITE AIR FILTRATION SYSTEM
OPTIONAL
負壓-無級可調
Infinite Adjustment
Paramedics could set up a specific value accordingly based on usage scenarios.
負壓-計時
Ease of Maintenance
The central control terminal directly shows the accumulated usage time of the air filtration system, and will provide timely and straightforward maintenance reminders when necessary.
負壓-聲光報警
Audio-Light Alarm
*
Optional Audio-Light Alarm system. When the medical compartment is over or depressurized, the system issues audio/light alarms immediately to remind paramedics to check the sealing status.
O2-En
OPTIONAL
Auto Oxygen Supply System
Automatically start, select, and stop oxygen supply, and switch oxygen cylinders for supply without manual intervention, allowing to focus on other details and reducing stress. Auto/manual oxygen supply available*.
OPTIONAL
Central Oxygen Supply System
Standard oxygen cabinet to fit two units of 10L oxygen cylinders with switch valve and pressure regulators, and multiple wall-mounted oxygen outlets and humidifier bottles for oxygen supply.
T8 - 6. 手動供氧
內頂
Premium Customization
Integrated Aluminum Ceiling
The ceiling can be integrated with medical spotlights, grab handles, UV light, IV hooks, ventilation fan, central control station, AC outlets, etc.
門控?zé)艄? title=
OPTIONAL
Rear Lighting Control Panel
Additional lighting control panel can be installed at the rear entrance, ensuring a more convenient and safe operation especially at nights.
開門指示器
OPTIONAL
Door Opening Indicators
All rear doors and flaps are equipped with sensors, and a door opening indicator is installed in the driver's cab to indicate open/close status of each rear door.
10.豐富配置
Diverse Configurations
  • Aluminum box with big corners
  • Customizable outside flaps
  • PVC customizable interior
  • Siren-Flasher system
  • Central control system
  • Auto / Central oxygen supply system
  • Power management system
  • Stretcher management system
Mainstream Chassis
Built upon the Ford Transit T8 chassis cab, the Transit T8 Box Ambulance is equipped with an 8AT/6MT gearbox and 2.3T diesel engine, and it provides outstanding payload capability and spacious interior.
底盤
opening
G2
G3
G4
MAIN TECH SPECS
Ext. Dimension
5998*2340*2800 mm
GVW
4,495 kg
Drive
LHD
Gearbox
8AT / 6MT
Engine
2.296 L
Fuel, Emission
Diesel, Local fit
