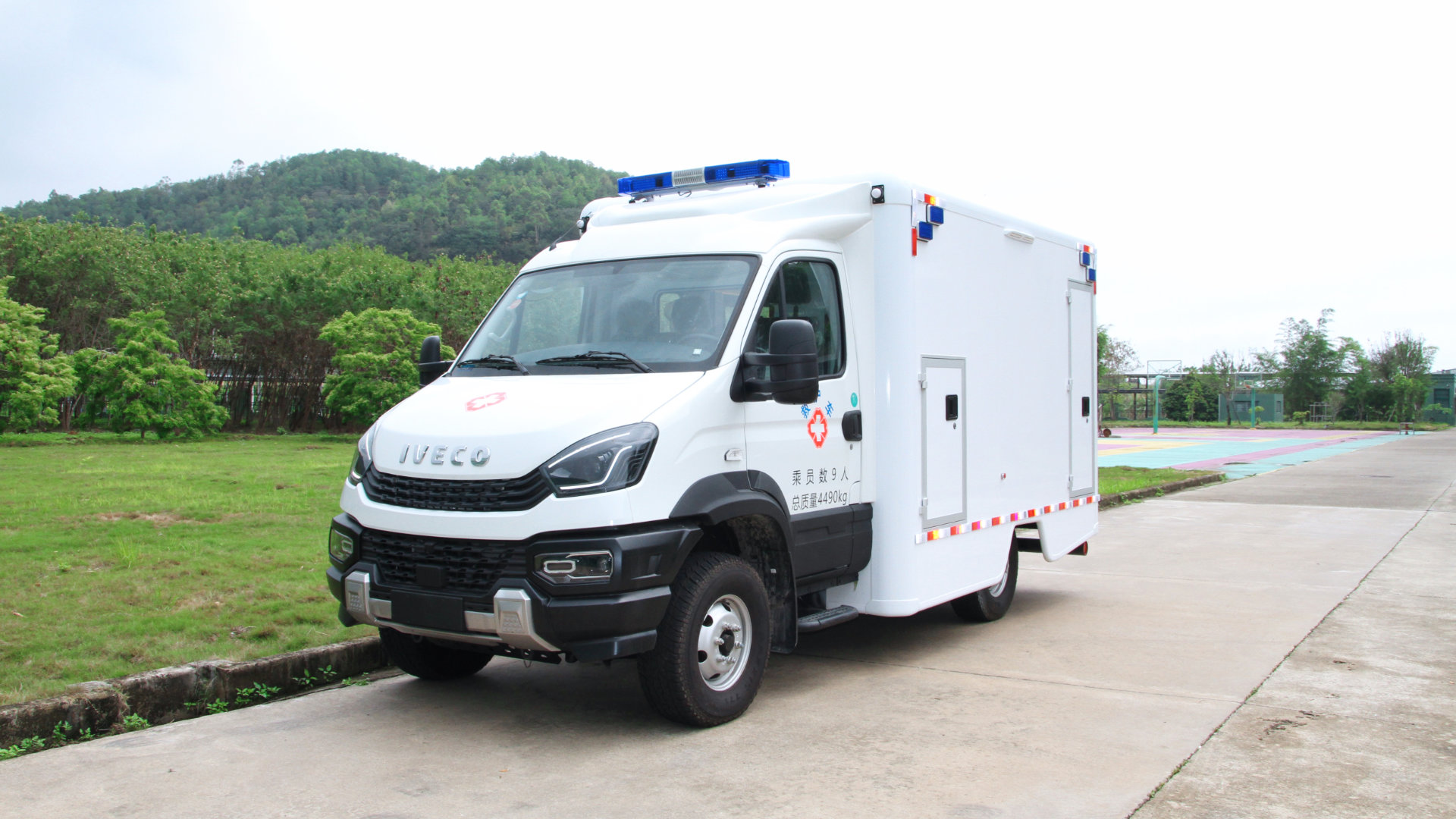

Iveco Ouba Thunder 4x4 Box Ambulance
Aluminum box / Multiple layouts / Premium
+ 查看更多

Uncompromised performance

OFF-ROAD 4x4 chassis cab

Premium OFF-ROAD capability

All-time 4x4 with three differential locks

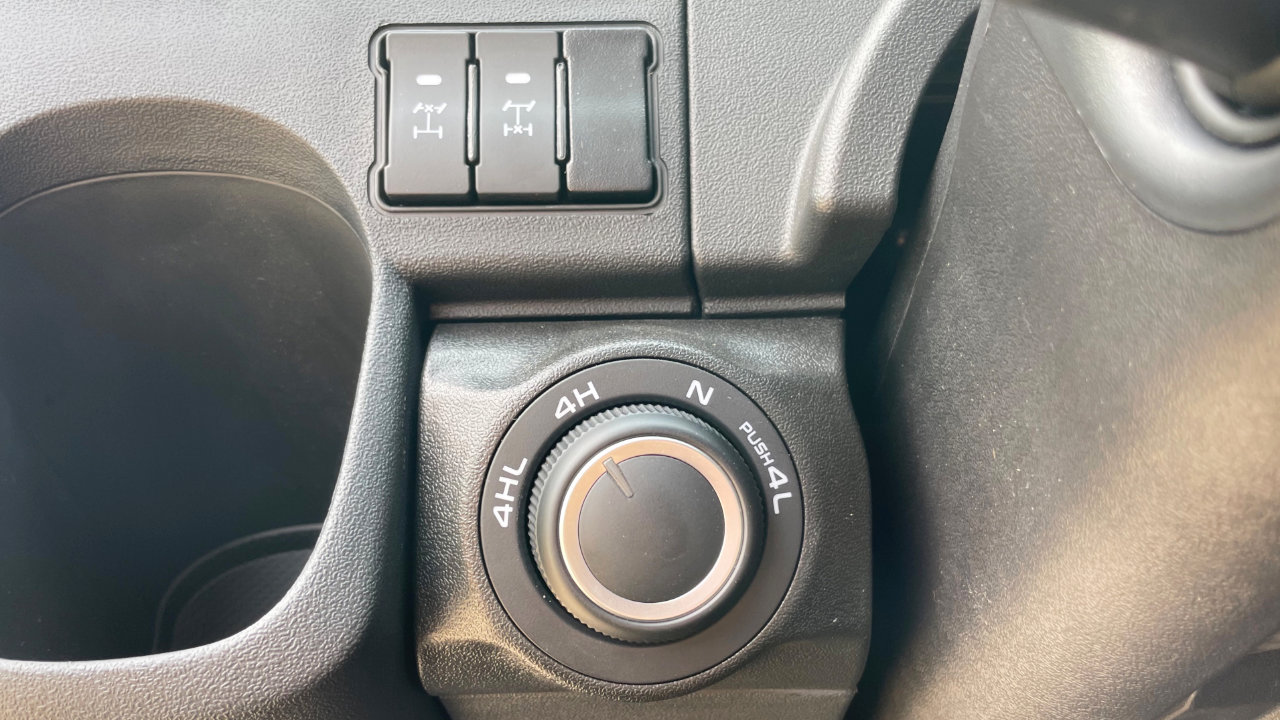

High/low speed transfer

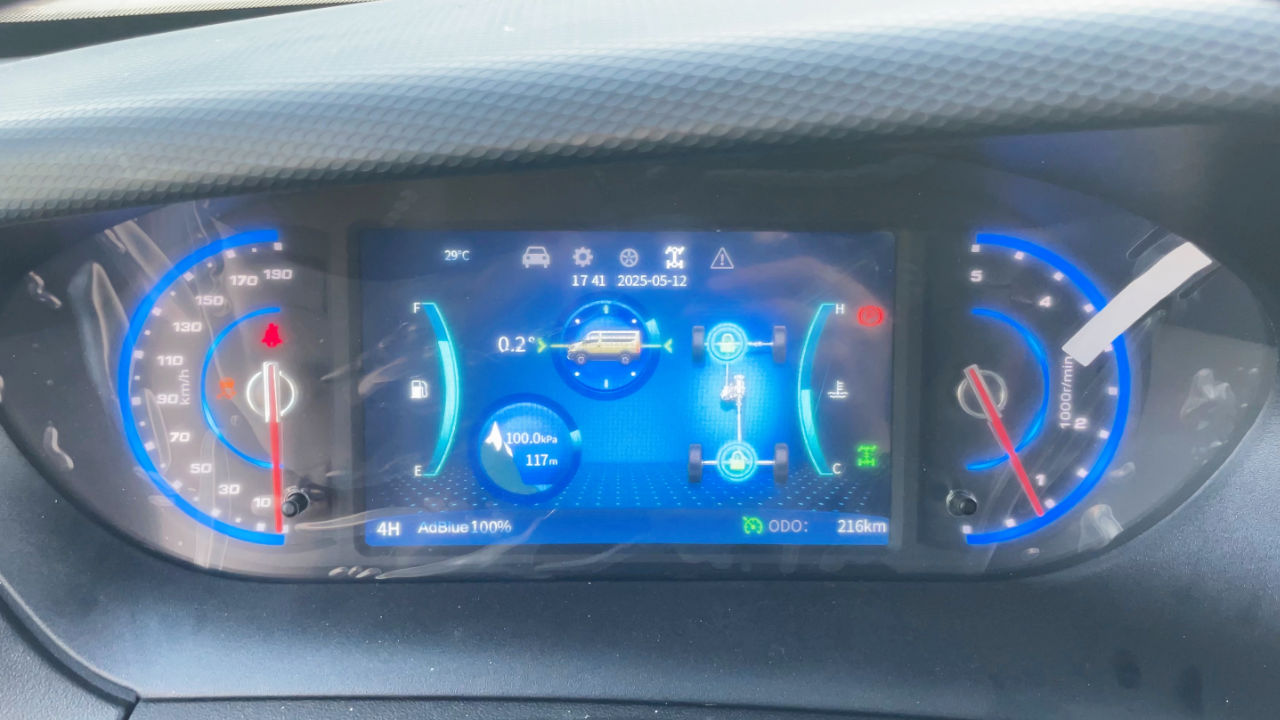

Off-road information and status display
Wading depth: 700 mm (standard) / 1000 mm (optional)
Stoping and restarting the engine in water (optional)
265/75R16 (10-ply) all-terrain (AT) tires, and full-size spare tire
Gradability: 60%; Approach/Departure angle: 30°/11°
6x drive modes: Standard, Mud, Sand, Snow, Rock, Escape

Outstanding performance

Body-on-frame design with high torsional rigidity
Front double-wishbone torsion bar independent suspension
3.0T diesel engine and 8AT/6MT transmission
Power output of 132/179 kW and maximum torque of 430 N
110L fuel tank to ensure longevity

Big corner design

Aluminum rear compartment

Aluminum Box Structure

Featuring lightweight, high strength, high density, and spacious design, the aluminum box compartment is capable of fulfilling complex layouts and functional needs.

Big corners design

The aluminum box compartment features a big-corners design, allowing to integrate flashers and/or turning lights at the top corners without compromising internal space and external storage.

Convenient external storage

The versatile aluminum box compartment allows to customize and fit external storage compartments for oxygen supply system, spine board and scoop stretcher, medical supplies and rescue equipments.

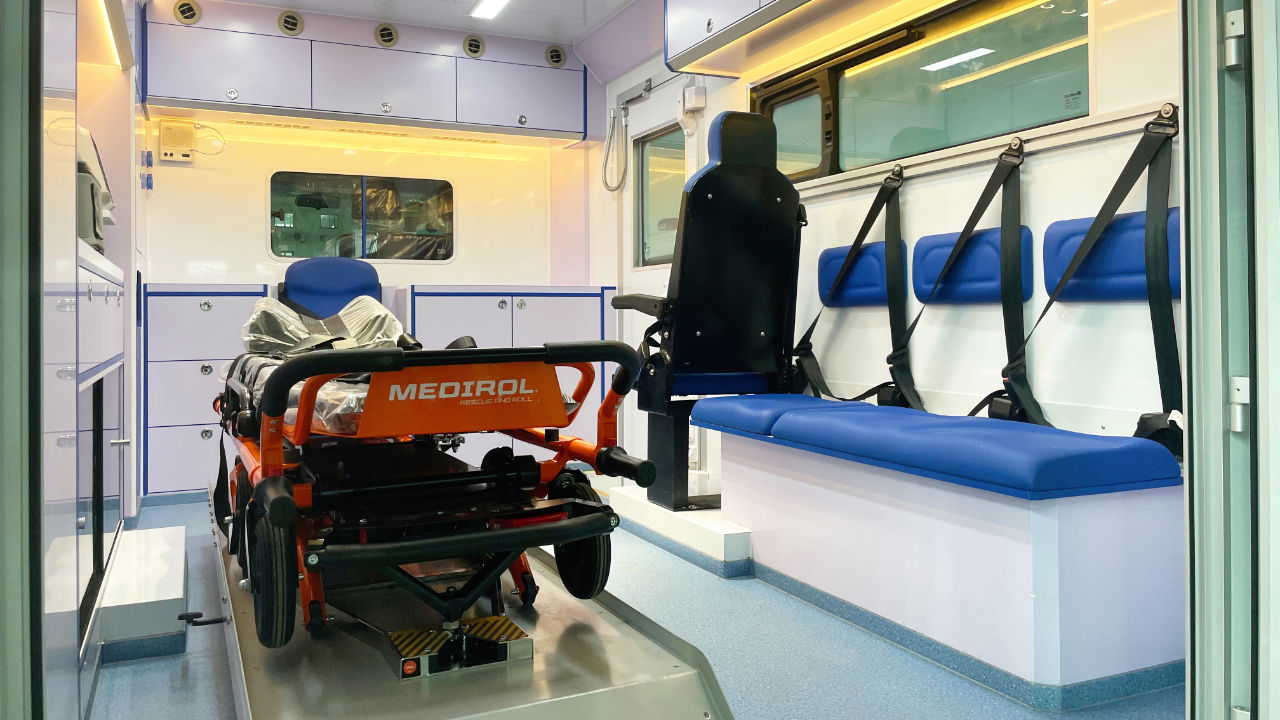

Spacious interior

Fulfill complex layout and functional needs

The patient compartment interior is crafted from premium PVC/Aluminum-sheet that features lightweight, thermal insulation, flame resistance, impact resistance, and anti-deformation/mold properties . It’s highly customizable and convenient to maintain and upgrades.

The spacious interior is designed to meet complex functional and customization requirement, including heavy-duty internal and external storage compartment, medical cabinets, lockers, stretcher platform, equipment mounting stations, environmental control system, etc.

Advanced life support

Infection control

Multi-patient transport

ECMO

Maternal care

Laminar infection control

Premium Customization

PRECISE CONTROL

To access all functional systems through all-in-one central control system.

Central Touch Screen

To access systems of lighting, power supply, auto oxygen supply, AC, heat, air filtration, etc., in one place. Functions are optional and the user interface is fully customizable.

*Illustrated configurations for reference only.

Mechanical Control Panel

While controlling all systems, the mechanical control panel provides large physical buttons with status indicators.

*Illustrated configurations for reference only.

INFINITE AIR FILTRATION SYSTEM

OPTIONAL

Infinite adjustment

Paramedics could set up a specific value accordingly based on usage scenarios.

Ease of maintenance

The central control terminal directly shows the accumulated usage time of the air filtration system, and will provide timely and straightforward maintenance reminders when necessary.

Audio-Light alarm

Optional Audio-Light Alarm system. When the medical compartment is over or depressurized, the system issues audio/light alarms immediately to remind paramedics to check the sealing status.

OPTIONAL

Auto oxygen supply system

Automatically start, select, and stop oxygen supply, and switch oxygen cylinders for supply without manual intervention, allowing to focus on other details and reducing stress. Auto/manual oxygen supply available*.

OPTIONAL

Central oxygen supply system

Standard oxygen cabinet to fit two sets of 10L oxygen cylinders, pressure regulators, flowmeter, switch valve, pressure relief valve, multiple wall-mounted oxygen outlets and humidifier bottles for oxygen supply.

Premium Customization

Integrated aluminum ceiling

The ceiling can be integrated with medical spotlights, grab handles, UV light, IV hooks, ventilation fan, central control station, AC air vents, etc.

OPTIONAL

Rear lighting control panel

Additional lighting control panel can be installed at the rear entrance, ensuring a more convenient and safe operation especially at nights.

OPTIONAL

Door opening indicators

All rear doors and flaps are equipped with sensors, and a door opening indicator is installed in the driver's cab to indicate open/close status of each rear door.

Diverse Configurations

Aluminum box compartment with small/big corners
Customizable layouts, functions, storage
Siren-flasher interconnection system
Intelligent power management system
Vertical/horizontal equipment mounting stations
Mechanical / Infinite air filtration system
AC, disinfection, surveillance, ventilation system
Convenience electric boarding steps and handles

Convenient stretcher access

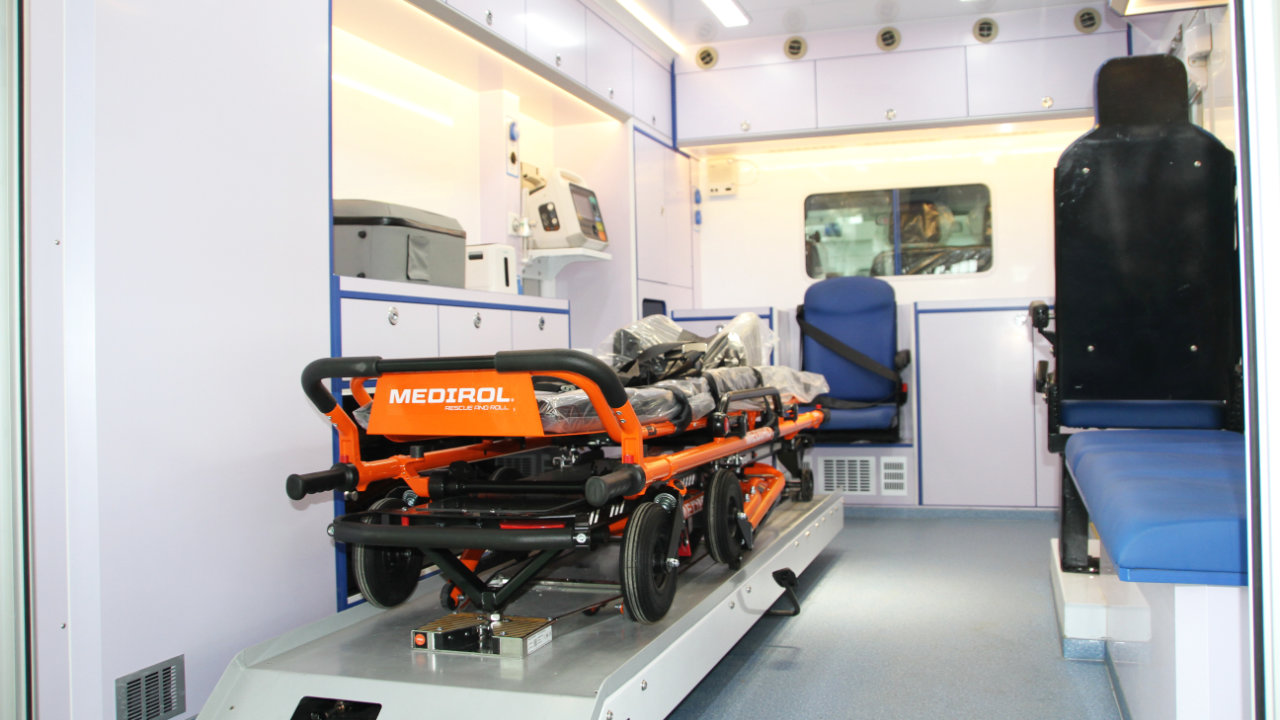

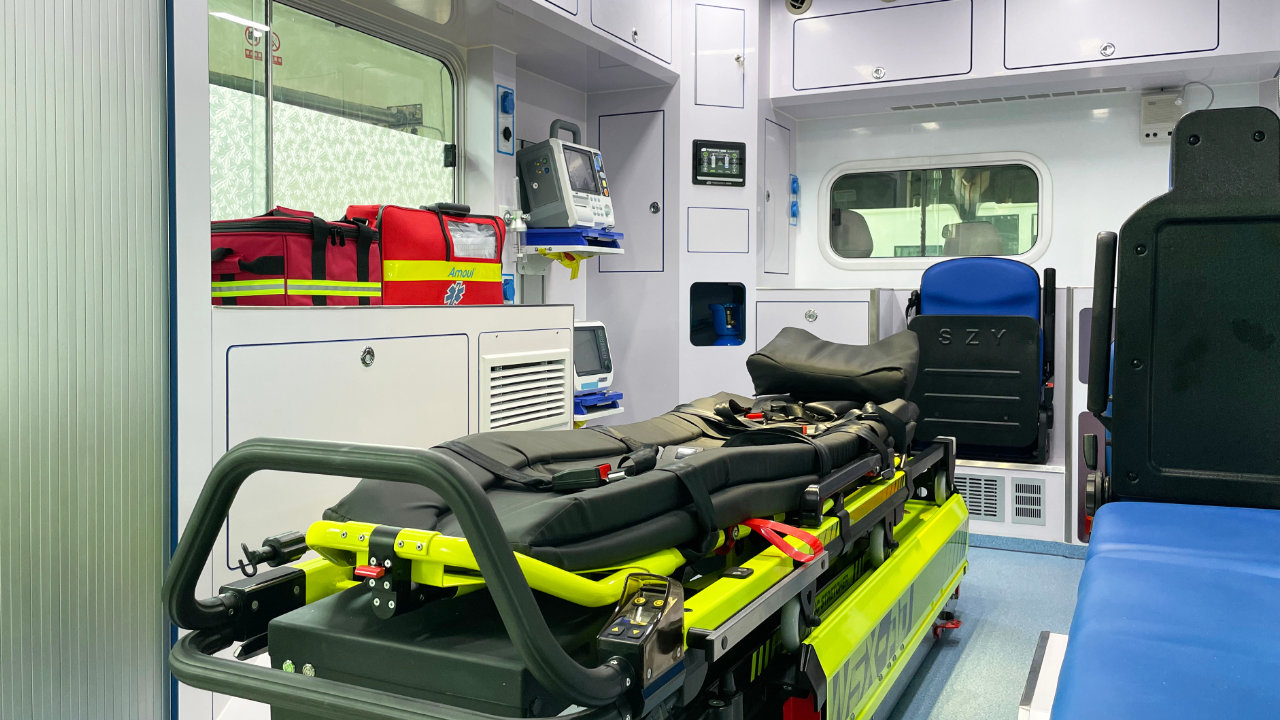

To ensure optimal performance and efficiency in off-road rescue missions, the patient compartment is equipped with a tiltable stretcher platform integrated with a roll-in stretcher, and the spine board and scoop stretcher are accessible through the external storage compartment. This configuration prioritizes accessibility and efficiency in performing rescue missions in challenging environments.
